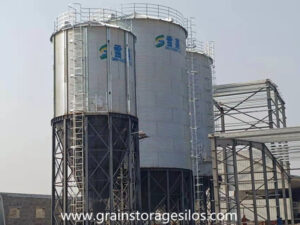

This is a hopper bottom steel silo project for corn,wheat and soybeans pulp storage.
There is a flange connection at bottom of 150T bean pulp’s silo,in order to connect with four axis screw conveyor.
And we designed 70°corner cone bottom silo for bean pulp,to make sure bean pulp goes out smoothly.

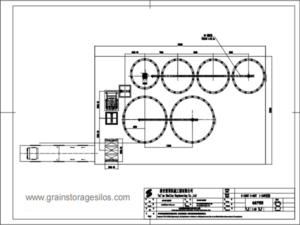

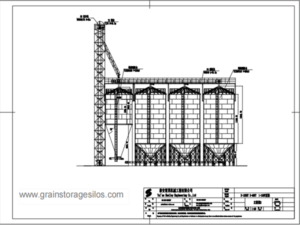

2x1000T galvanized grain silo specification in this system
Model:TCZK10014
Diameter:10m
Volume:1449m3
Eave height:21.59m
Total height:24.09m
Hopper bottom silo rings:14 rings
Silo bottom angle:45°
Zinc coated:275g/m2
3x400T galvanized grain silo specification in this system
Model:TCZK07310
Diameter:7.3m
Volume:550m3
Eave height:15.76m
Total height:17.62m
Hopper bottom silo rings:10 rings
Silo bottom angle:45°
Zinc coated:275g/m2
150T galvanized grain silo specification in this system
Silo model:TCZK06406
Volume:320m3
Diameter:6.4m
Eave height:8.35m
Total height:17.85m
Zinc coated:275g/m2
Hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are the steel silos with a cone bottom. Hopper bottom silos are erected on the supporting structure to make the delicate products unloading easily through gravity. Hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
